KubeVirt and Harvester Coriolis Plugin
Coriolis provides agentless integration with supported virtualization platforms by running the platform plugin directly on the Coriolis Appliance. This architecture eliminates the need to deploy agents on source or destination platforms and simplifies connectivity and setup.
Coriolis has been validated for Harvester environments from version 1.3 through 1.8.0. This compatibility also extends to SUSE Virtualization , which is based on the same underlying platform capabilities.

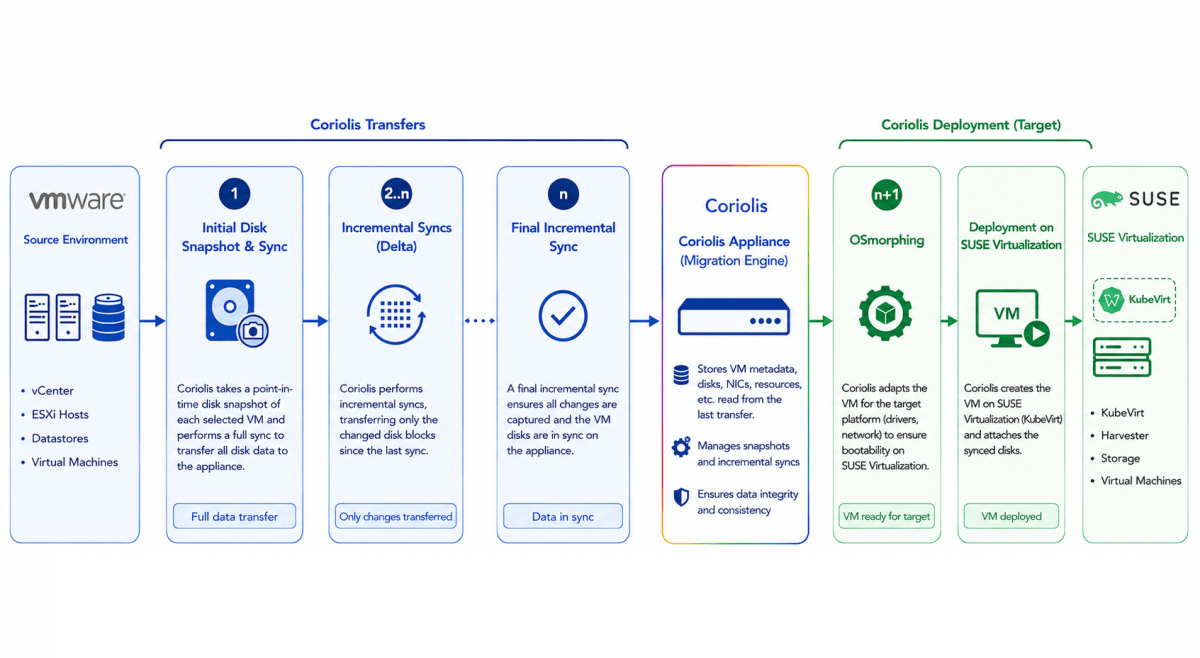

For a VMware to SUSE Virtualization migration, here is a representation of the steps involved:
KubeVirt destination cloud
For detailed information regarding KubeVirt/Harvester capabilities and steps performed while using it as a destination cloud, please check the following page:
KubeVirt Endpoint Connection Parameters

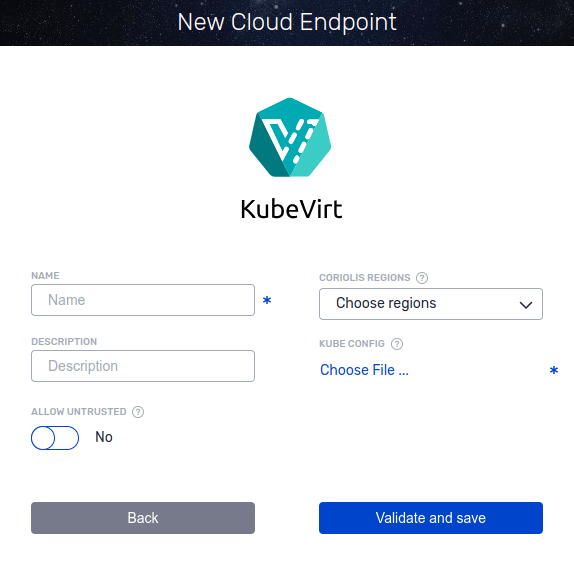

To connect to Kubevirt to perform migration to it, the following connection parameters are required:
A valid kubeconfig YAML needs to be passed to the Coriolis endpoint. In a traditional KubeVirt setup, the kubeconfig can be found at the ~/.kube/config location in your environment.

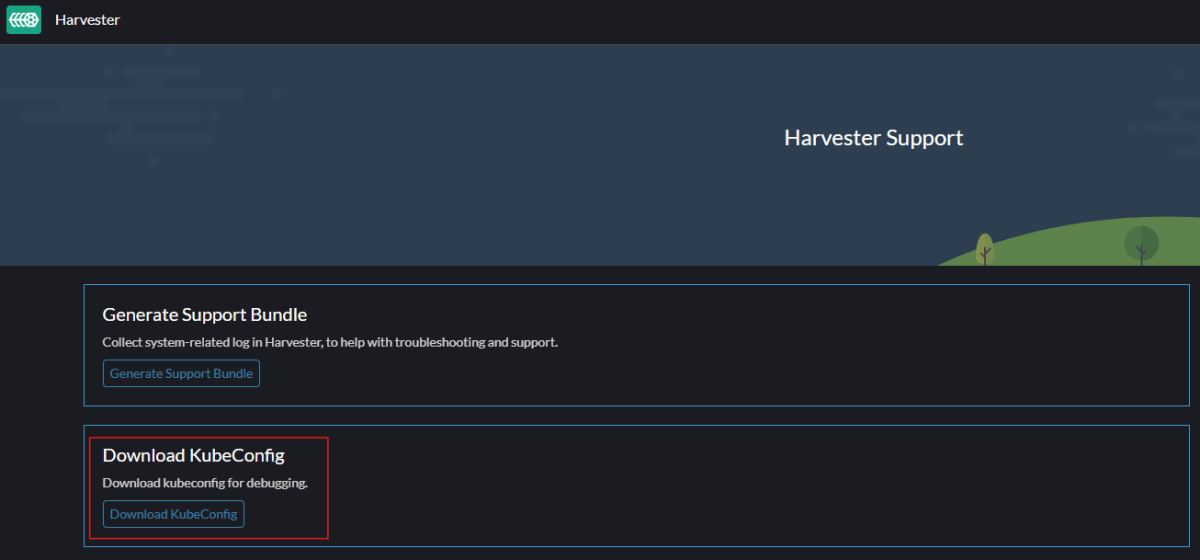

If using Harvester, a kubeconfig can be generated for the logged-in user by accessing the Harvester UI’s Support page and clicking Download KubeConfig , as shown below.
KubeVirt platform specifics
Supported Actions: |
Migration Destination - Replica Destination |
Comments |
|---|---|---|
Plugin identifier |
kubevirt |
Identifies the plugin Used for the - provider CLI parameter |
Credentials needed |
kubeconfig that mentions either user TLS certificates or generated token |
Necessary credentials to give to Coriolis |
Deployment requirements |
Coriolis worker component(s) need network access to the Kubernetes and KubeVirt APIs |
Coriolis deployment and environment connectivity requirements |
DRaaS source requirements |
Kubevirt is not currently supported as a DRaaS source |
Requirements to use the replica export (DRaaS source) features |
Instance identification scheme |
Names must be unique |
How instances to migrate/replicate are identified on a cloud handled by the plugin |
Network identification scheme |
Names of VM Networks |
How the plugin identifies networks. Required for the network_map field of the - destination-environment |
KubeVirt migration user required permissions
This table will describe the minimum role requirements of a migration user to bind to migrate instances to a destination KubeVirt platform:
Role Type |
Resource |
Access Level |
API Group |
|---|---|---|---|
Cluster |
virtualmachineimages |
Read |
harvesterhci.io |
volumesnapshotclasses |
Read |
snapshot.storage.k8s.io |
|
storageclasses |
Read |
storage.k8s.io |
|
namespaces |
Read |
||
network-attachment-definitions |
Read |
k8s.cni.cncf.io |
|
customresourcedefinitions |
Read |
apiextensions.k8s.io |
|
Namespace |
persistentvolumeclaims |
Read/Write |
|
pods |
Read/Write |
||
virtualmachineinstances |
Read/Write |
kubevirt.io |
|
volumesnapshots |
Read/Write |
apiextensions.k8s.io |
|
volumesnapshots/status |
Read |
apiextensions.k8s.io |
|
virtualmachines |
Read/Write |
kubevirt.io |
|
virtualmachines/start |
Read/Write |
subresources.kubevirt.io |
